Cavitation air floatation Machine(CAF) for wastewater treatments

Summarize

Cavitation Air Flotation is an excellent sewage treatment technique, rational design, operation convenient and economic, which can remove the suspended solid from the waste water by microscopic bubble. Cavitation aerator is the main part of the system.It can produces "microscopic bubble" directly.

Aerator is widely used by high-rate aeration of flotation and flotation tank in petroleum, petrifaction, textile, food, paper making, dyes and pigments, brewing, pharmacy, leather making and slaughtering industries wastewater treatment and municipal sewage treatment.

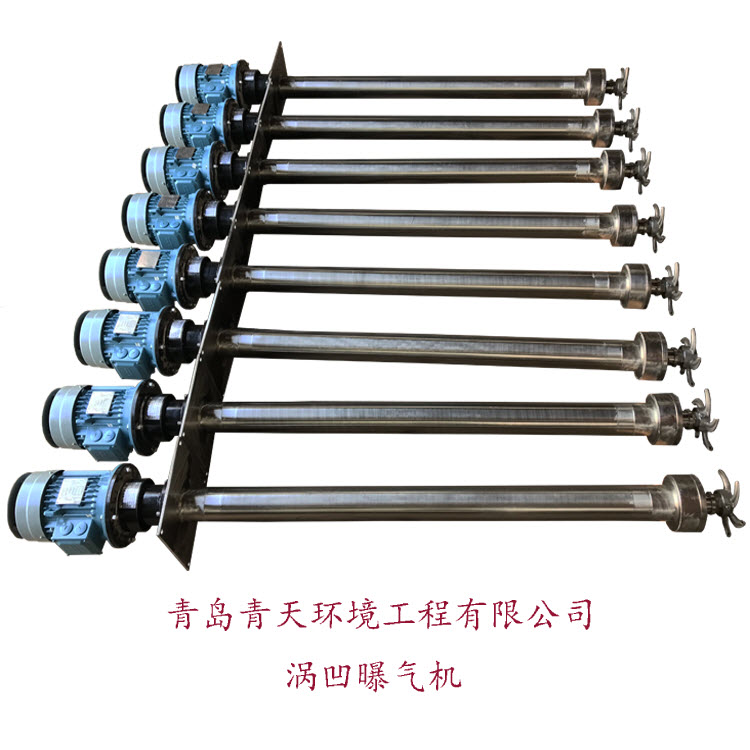

It is composed of motor, motor base, coupler, intake shaft, aerator cylinder, grease seal, mechanical seal and impeller outlet. Aerator cylinder can be made of carbon steel and stainless steel. Cavitation aerator bubble is formed through motor high speed revolution, negative pressure will occur when mixing the water flow. Then inhaling air through air intake; The air is inhaled into the water when pass through central shaft, rotates in the water after passing impeller, then formed fine air bubbles with diameter from 5um---15um. A stream of micro-fine air bubbles attach to solid suspension in the water rising to the surface of the water, then formed scums, fine air bubbles will last 50~60 seconds in the water.

Cavitation Aerator Features

Large aeration volume

High speed rising of fine bubbles , high density
Easy operation and management, lower power consumption

Little noise, long life span

No need air compressor, dissolved air vessel.

Single or multi aerator are all available based on customers application.Single aerator has the feature of

the system is capable of removing sewage grease, gum and fiber suspension, reduced BOD, COD, SS and other sewage load, and can improve the water quality.

Cavitation air floatation Machine(CAF)
