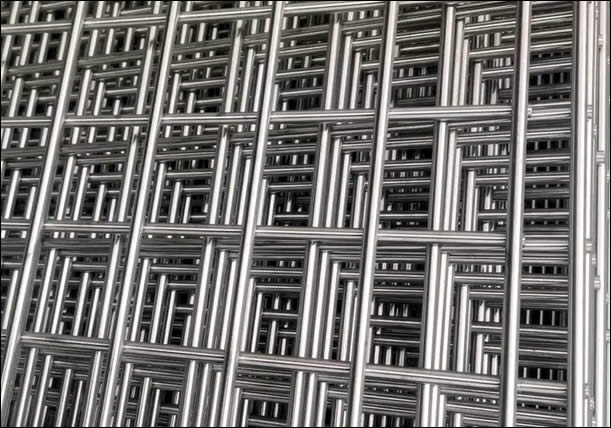

Stainless Steel Welded Wire Mesh: Panels and Rolls in Grades 304 and 316

Metech Welded Mesh Inc. excels in designing, manufacturing, and exporting high-quality stainless steel welded wire mesh. We offer a versatile array of types and specifications to ensure reliability for any project size. Recognizing the unique demands of each project, we provide customized solutions to meet our clients’ specific requirements. Our team collaborates closely with customers, crafting products that perfectly match their applications. Our dedication to quality ensures every piece of welded wire mesh offers outstanding performance and durability.

Material Variations

Stainless steel welded wire mesh is made from two main stainless steel grades: 304 and 316, both offering good corrosion resistance. Grade 304 is versatile, suitable for a wide range of environments, while 316 contains molybdenum, enhancing its resistance to corrosive elements like salt water and chemicals. The low carbon variants, 304L and 316L, improve weldability and minimize corrosion risk post-welding, with 316L also offering slightly better corrosion resistance in harsh environments.

Wire Diameter Options

The wire diameter of stainless steel welded wire mesh varies significantly to suit different applications, ranging from thin wires of about 0.5mm for delicate tasks to more robust wires up to 8mm for heavy-duty uses.

• Fine Range: From as thin as 0.025mm to 0.5mm, ideal for precision filtration and fine mesh screens.
• Medium Range: 0.5mm to 3mm, suited for general applications such as fencing, guards, and shelving.
• Heavy Duty Range: 3mm to 8mm, designed for industrial use, including reinforcement, heavy screens, and security barriers.

Mesh Size Variability

The spacing between wires, or mesh size, can be as small as 1x1mm for fine filtration and go up to 100x100mm for structural applications, allowing for versatile use in various contexts from security fencing to architectural applications.

• Ultra-Fine Mesh: 0.5×0.5mm to 1x1mm, perfect for fine filtration and delicate applications.
• Standard Mesh: 25x25mm, 50x50mm, 100x100mm, commonly used for architectural features, machine guards, and agricultural barriers.
• Large Mesh: Up to 200x200mm, used in construction for structural support, security fencing, and heavy-duty barriers.
