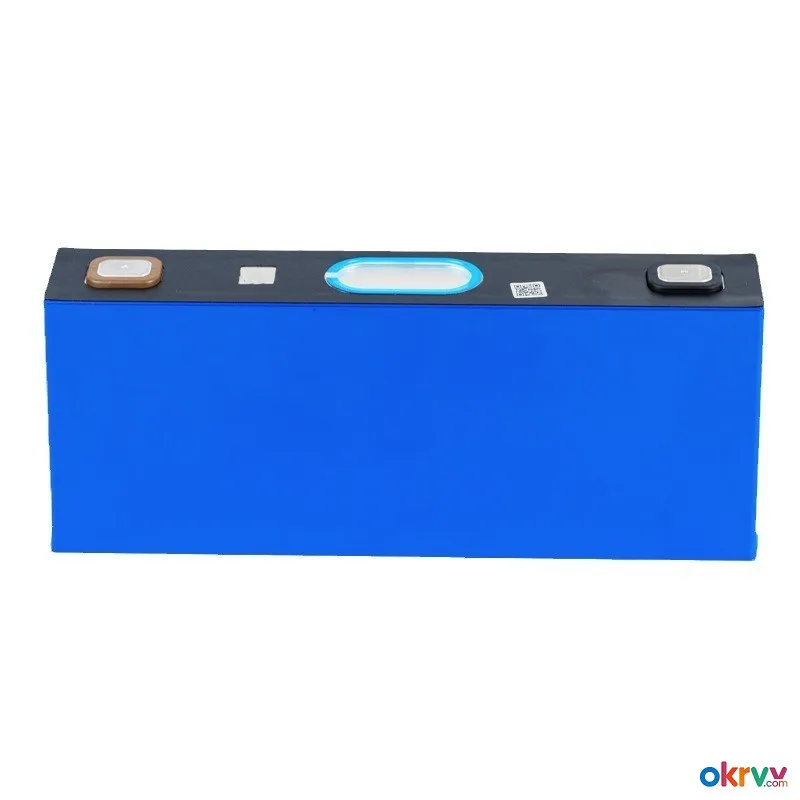

CATL 3.7V 200Ah NCM Prismatic Cell

CATL 3.7V 200Ah NCM Prismatic Cell

The 3.7V 200Ah is a prismatic NCM (Nickel Cobalt Manganese) lithium-ion cell designed for high-energy applications. It offers a nominal capacity of 200Ah and a nominal voltage of 3.7V, delivering stable power output for demanding systems.

Key Specifications:

l Nominal Voltage: 3.7V

l Nominal Capacity: 200Ah

l Max Charge Voltage: 4.2V

l Discharge Cut-off Voltage: 2.75V

l Max Discharge Current: 1C (200A)

l Internal Resistance: ≤0.35mΩ

l Cycle Life: >2000 cycles

l Weight: approx. 2.9kg

l Dimensions: 260 × 101 × 47mm (L×W×H)

Key Features:

l High energy density with compact prismatic design

l Low internal resistance for efficient power delivery

l Stable performance across a wide temperature range

l Reliable cycle life for long-term use

Applications:
This cell is suitable for electric vehicles, golf carts, electric scooters, e-bikes, and other high-power applications requiring consistent energy output. It can also be assembled into larger battery packs for energy storage systems.

If you are sourcing NCM cells for your project, feel free to contact us for specifications and availability.
